Class ILProgressBar.TILExternalProgressBarElement

This is a Beta Read Only version of this page. Please review and send recommendations to mitov@mitov.com. We will enable the editing as soon as we are happy with the overall Wiki site.

Package: InstrumentLabPkg

Unit: ILProgressBar

Inherits: TILProgressBarElement

Contents 1 Syntax 1.1 Delphi: 1.2 C++ Builder: 1.3 Visual C++ (MFC): 1.4 C# (.NET): 2 Summary 3 Description 4 Properties 4.1 Published 5 Pins 6 From TILProgressBarElement 7 Properties 7.1 Published 8 Methods 8.1 Public 9 From TILBasicProgressBar 10 Properties 10.1 Published 11 Methods 11.1 Public 12 From TULBasicControl 13 Properties 13.1 Published 14 Methods 14.1 Public 15 Events 16 From TLPTransparentControl 17 Properties 17.1 Published 18 Methods 18.1 Public 19 From TSLCustomControlItem 20 Properties 20.1 Public 21 Methods 21.1 Public

Syntax

Delphi:

type TILExternalProgressBarElement = class( TILProgressBarElement )

C++ Builder:

class TILExternalProgressBarElement : public TILProgressBarElement

Visual C++ (MFC):

class CTILExternalProgressBarElement : public CTILProgressBarElement

C# (.NET):

public ref class ExternalProgressBarElement : Mitov.InstrumentLab.ProgressBarElement

Summary

Component element drawing external data progress bar.

Description

Use this component element to display external data progress bar.

Diagram:

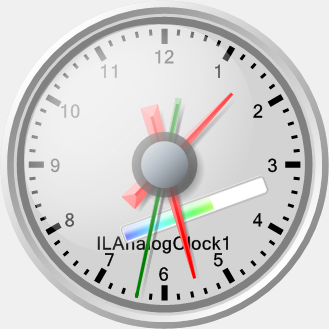

Example:

Properties

Published

• Value - Specifies the value of the component.
• Min - Specifies the minimal value the component can hold.
• Max - Specifies the maximal value the component can hold.

Pins

• InputPin - The real or ranged real input pin of the component.

From TILProgressBarElement

Properties

Published

• Position - Specifies the X,Y position of the element.
• Size - Specifies the size of the element.

Methods

Public

• procedure Invalidate()

From TILBasicProgressBar

Properties

Published

• Color - Specifies the color of the progress bar.
• Border - Specifies the border settings.
• Gauge - Specifies the gauge settings.
• Rotation - Specifies the rotation settings.
• Elements - Allows adding component elements.

Methods

Public

• procedure GetChildren(Proc : TGetChildProc; Root : TComponent)
• procedure SetBounds(ALeft : Integer; ATop : Integer; AWidth : Integer; AHeight : Integer)

From TULBasicControl

Properties

Published

• AntiAlias

Methods

Public

• procedure SetBounds(ALeft : Integer; ATop : Integer; AWidth : Integer; AHeight : Integer)
• procedure CopyToBitmap(ABitmap : TBitmap)

Events

• OnKeyDown
• OnKeyPress
• OnKeyUp
• OnClick
• OnDblClick
• OnMouseDown
• OnMouseMove
• OnMouseUp

From TLPTransparentControl

Properties

Published

• Transparent

Methods

Public

• procedure SetParent(AParent : TWinControl)
• procedure SetBounds(ALeft : Integer; ATop : Integer; AWidth : Integer; AHeight : Integer)
• procedure SetTransparentBackground(ABitmap : TBitmap)
• procedure InvalidateBackground()

From TSLCustomControlItem

Properties

Public

• Index
• ComponentList

Methods

Public

• function GetParentComponent() : TComponent
• function HasParent() : Boolean
• procedure SetParent(AParent : TWinControl)
• function GetHasEnable() : Boolean
• function GetCanDisable() : Boolean
• procedure SetParentComponent(AValue : TComponent)
