Class ILSegmentText.TILExternalSegmentTextElement

This is a Beta Read Only version of this page. Please review and send recommendations to mitov@mitov.com. We will enable the editing as soon as we are happy with the overall Wiki site.

Package: InstrumentLabPkg

Unit: ILSegmentText

Inherits: TILSegmentText

Contents 1 Syntax 1.1 Delphi: 1.2 C++ Builder: 1.3 Visual C++ (MFC): 1.4 C# (.NET): 2 Summary 3 Description 4 Properties 4.1 Published 5 Methods 5.1 Public 6 From TILSegmentText 7 Properties 7.1 Published 8 Methods 8.1 Public 9 Pins 10 From TILCustomizableSegmentIndicator 11 Events 12 From TILBasicSegmentIndicator 13 Properties 13.1 Published 14 From TILBasicRotatableControl 15 Properties 15.1 Published 16 From TULBasicColorControl 17 Properties 17.1 Published 18 From TULBasicControl 19 Properties 19.1 Published 20 Methods 20.1 Public 21 Events 22 From TLPTransparentControl 23 Properties 23.1 Published 24 Methods 24.1 Public 25 From TSLCustomControlItem 26 Properties 26.1 Public 27 Methods 27.1 Public

Syntax

Delphi:

type TILExternalSegmentTextElement = class( TILSegmentText, ILPComponentElement, ILPDrawComponentElement )

C++ Builder:

class TILExternalSegmentTextElement : public TILSegmentText

Visual C++ (MFC):

class CTILExternalSegmentTextElement : public CTILSegmentText

C# (.NET):

public ref class ExternalSegmentTextElement : Mitov.InstrumentLab.SegmentText

Summary

Component element drawing external text data 7, 9, 14 or 16 segment indicator.

Description

Use this component element to display external text data 7, 9, 14 or 16 segment indicator.

Diagram:

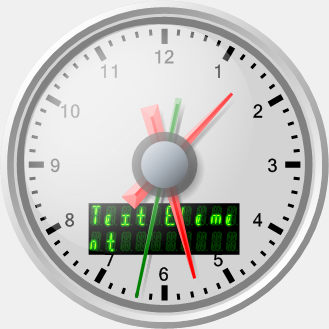

Example:

Properties

Published

• Position - Specifies the X,Y position of the element.
• Size - Specifies the size of the element.

Methods

Public

• procedure Invalidate()

From TILSegmentText

Properties

Published

• SegmentsType - Specifies the segments type - 7, 9, 14 or 16.
• Rows - Specifies the number of rows in the display.
• Cols - Specifies the number of columns in the display.
• Elements - Allows adding component elements.
• Text - Specifies the current text value of the display.

Methods

Public

• procedure GetChildren(Proc : TGetChildProc; Root : TComponent)
• procedure SetBounds(ALeft : Integer; ATop : Integer; AWidth : Integer; AHeight : Integer)

Pins

• InputPin - The text input pin of the component.

From TILCustomizableSegmentIndicator

Events

• OnCustomSymbol

From TILBasicSegmentIndicator

Properties

Published

• SegmentsType
• Segments
• DecimalPoint
• Indents

From TILBasicRotatableControl

Properties

Published

• Rotation

From TULBasicColorControl

Properties

Published

• Color
• Visible

From TULBasicControl

Properties

Published

• AntiAlias

Methods

Public

• procedure SetBounds(ALeft : Integer; ATop : Integer; AWidth : Integer; AHeight : Integer)
• procedure CopyToBitmap(ABitmap : TBitmap)

Events

• OnKeyDown
• OnKeyPress
• OnKeyUp
• OnClick
• OnDblClick
• OnMouseDown
• OnMouseMove
• OnMouseUp

From TLPTransparentControl

Properties

Published

• Transparent

Methods

Public

• procedure SetParent(AParent : TWinControl)
• procedure SetBounds(ALeft : Integer; ATop : Integer; AWidth : Integer; AHeight : Integer)
• procedure SetTransparentBackground(ABitmap : TBitmap)
• procedure InvalidateBackground()

From TSLCustomControlItem

Properties

Public

• Index
• ComponentList

Methods

Public

• function GetParentComponent() : TComponent
• function HasParent() : Boolean
• procedure SetParent(AParent : TWinControl)
• function GetHasEnable() : Boolean
• function GetCanDisable() : Boolean
• procedure SetParentComponent(AValue : TComponent)
