Class ALBandPass.TALBandPass

This is a Beta Read Only version of this page. Please review and send recommendations to mitov@mitov.com. We will enable the editing as soon as we are happy with the overall Wiki site.

Package: AudioLabPkg

Unit: ALBandPass

Inherits: TALBandFilter

Contents 1 Syntax 1.1 Delphi: 1.2 C++ Builder: 1.3 Visual C++ (MFC): 1.4 C# (.NET): 2 Summary 3 Description 4 From TALBandFilter 5 Properties 5.1 Published 6 From TALCommonFIRFilter 7 Properties 7.1 Published 7.2 Public 8 From TALCommonFilter 9 Methods 9.1 Public 10 Pins 11 From TSLBasicThreadedEnableFilter 12 Properties 12.1 Published 13 From TSLBasicThreadedFilter 14 Properties 14.1 Published

Syntax

Delphi:

type TALBandPass = class( TALBandFilter )

C++ Builder:

class TALBandPass : public TALBandFilter

Visual C++ (MFC):

class CTALBandPass : public CTALBandFilter

C# (.NET):

public ref class BandPass : Mitov.AudioLab.BandFilter

Summary

Performs a BandPass filter over the input signal.

Description

Use this component to perform a BandPass filter over the input signal.

Diagram:

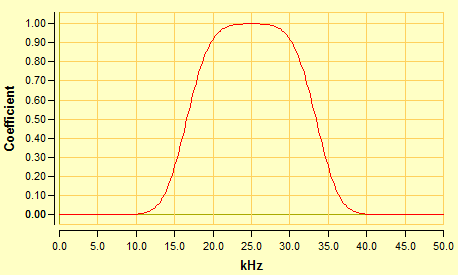

Example:

From TALBandFilter

Properties

Published

• FreqLow - Low cutoff frequency.
• FreqHigh - High cutoff frequency.

From TALCommonFIRFilter

Properties

Published

• WindowType - Windowing function to be used when calculating the filters of the Filter.
• Alpha - Adjustable parameter associated with some of the windowing equations.
• NumTaps - Number of Taps(Coefficients).

Public

• Taps - Returns the calculated filter tap.

From TALCommonFilter

Methods

Public

• function GetWaveFormat() : PALWaveFormatExtensible

Pins

• InputPin
• OutputPin

From TSLBasicThreadedEnableFilter

Properties

Published

• Enabled

From TSLBasicThreadedFilter

Properties

Published

• Threading
