Class SLScope.TSLDataDisplayLegendView

This is a Beta Read Only version of this page. Please review and send recommendations to mitov@mitov.com. We will enable the editing as soon as we are happy with the overall Wiki site.

Package: SignalLabScopePkg

Unit: SLScope

Inherits: TSLLegendView

Contents 1 Syntax 1.1 Delphi: 1.2 C++ Builder: 1.3 Visual C++ (MFC): 1.4 C# (.NET): 2 Summary 3 Description 4 Properties 4.1 Published 5 From TSLLegendView 6 Properties 6.1 Published 7 Methods 7.1 Public 8 From TSLOptionalView 9 Properties 9.1 Published 10 Methods 10.1 Public 11 From TSLCustomSizeDisplayView 12 Properties 12.1 Published 13 From TSLCustomColorDisplayView 14 Properties 14.1 Published 15 From TSLDisplayView 16 Properties 16.1 Public 17 Methods 17.1 Public 18 From TSLDisplayComponent 19 Properties 19.1 Public 20 Methods 20.1 Public 21 From TLPPersistent 22 Methods 22.1 Public

Syntax

Delphi:

type TSLDataDisplayLegendView = class( TSLLegendView )

C++ Builder:

class TSLDataDisplayLegendView : public TSLLegendView

Visual C++ (MFC):

class CTSLDataDisplayLegendView : public CTSLLegendView

C# (.NET):

public ref class DataDisplayLegendView : Mitov.PlotLab.LegendView

Summary

Visual Legend of a display class.

Description

Defines a legend view to be used in the display controls.

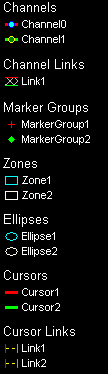

Example:

Properties

Published

• MarkerGroups - Specifies the appearance of the marker group labels legend group.
• Cursors - Specifies the appearance of the cursor labels legend group.
• CursorLinks - Specifies the appearance of the cursor link labels legend group.
• Labels - Specifies the appearance of the custom labels.
• CustomGroups - Specifies the appearance of the custom legend group.

From TSLLegendView

Properties

Published

• Font - Specifies the font for the legend.
• Buttons - Specifies the appearance and the behavior of the Legend view buttons.
• Align

Methods

Public

• procedure Draw(ADrawPart : TSLDisplayDrawPart; ACanvas : TLPCanvas; Vertical : Boolean; Printing : Boolean)

From TSLOptionalView

Properties

Published

• Visible - Specifies whether or not the viw is visible.

Methods

Public

• function IsVisible() : Boolean
• function IsVisibleForced() : Boolean

From TSLCustomSizeDisplayView

Properties

Published

• ViewSize - Specifies the way the view size will be calculated.
• Align - Specifies the desired alignment for the view (Left, Right, Top, Bottom etc.)

From TSLCustomColorDisplayView

Properties

Published

• Background - Specifies the background settings.

From TSLDisplayView

Properties

Public

• Height - Use this property to get the Height of the view in pixels.
• Width - Use this property to get the Width of the view in pixels.
• Top - Use this property to get the Top position of the view in pixels.
• Left - Use this property to get the Left position of the view in pixels.
• DefaultRect

Methods

Public

• function IsVisible() : Boolean
• function IsVisibleForced() : Boolean
• function GetIntValueAt(X : Integer; Y : Integer) : Real
• function GetMinValue() : Real
• function GetMaxValue() : Real
• procedure Draw(ADrawPart : TSLDisplayDrawPart; ACanvas : TLPCanvas; Vertical : Boolean; Printing : Boolean)
• procedure DrawEx(ADrawPart : TSLDisplayDrawPart; ACanvas : TLPCanvas; Vertical : Boolean)
• procedure DrawMouseSelction(ACanvas : TLPCanvas)

From TSLDisplayComponent

Properties

Public

• DrawRect

Methods

Public

• function IsVisible() : Boolean
• function GetOwner() : TPersistent

From TLPPersistent

Methods

Public

• function QueryInterface(IID : TGUID; Obj : TObject) : HResult
• function GetOwner() : TPersistent
• procedure OwnerNameChanged(AOldName : String; ANewName : String)
